BItmain ANTMINER APW7 PSU 1800W 10X PCI-E Original Power Supply For Asic Miner
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| High Light | APW7 PSU,APW7 PSU 1800W,10X PCI-E Original Power Supply |
||
|---|---|---|---|
Product Description

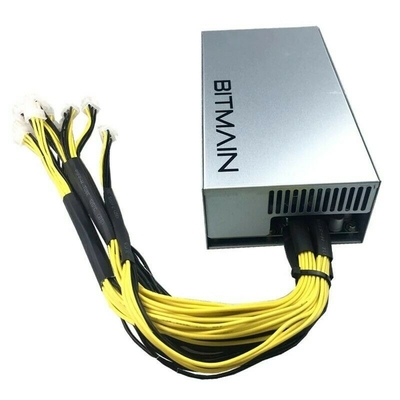

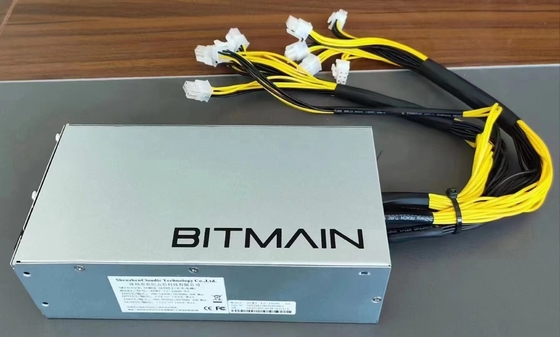

NEW BItmain ANTMINER APW7 PSU 1800W 10X PCI-E Original Power Supply For Asic Miner
Bitmain OEM APW7 Power Supply PSU Antminer 100-264V 1000-1800W 10x PCI-E Plugs.
This is a power supply suitable for older Bitmain ASIC crypto-currency miners such as Antminer S7, S9, T9, L3, D3, and others that didn't come with built-in power supplies.
The power supply has 10 PCI-Express connectors. Please note that it does not have any other connectors, such as Molex or ATX. It can supply 1000W when used on a 100-140V circuit and 1800W on a 200-264V circuit (recommended).
Please take note: These APW7 PSUs do not come with the wall power cord to the unit. They are not sold with the cord from the manufacturer.
The APW7 can deliver a maximum power of only 1000W if it is connected to a 110V mains power supply. To obtain the rated power of 1800W, the APW7 must be connected to a 220-240V mains power supply. Please check the mains power supply that is the standard in your region before ordering.
Specifications:
| Output | DC Voltage | 12.0V |
| Rated Current(220V input) | 150A | |
| Rated Power (220V input) | 1800W | |
| Rated Current(110V input) | 83.3A | |
| Rated Power (110V input) | 1000W | |
| Ripple & Noise | <1% | |
| Voltage Accuracy | 12.0-12.5V | |
| Source Regulation | <1% | |
| Load Regulation | <1% | |
| Setup, Rise Time | <2S | |
| Power off Protection Trip Time | >10mS | |
| Input | Voltage Range | 100-264V AC |
| Frequency Range | 47-63Hz | |
| Power Factor | >0.99(full load) | |
| Leakage Current | <1.5mA(220V 50Hz) | |
| Protection | Low-voltage Input | 80-89V AC |
| Output Short Circuit | Yes | |
| Output Overcurrent | 150-200A | |
| Overheat Protection | Yes | |
| Environment | Operating Temperature | -20-60℃ |
| Operating Humidity | 20%-90%RH(non-‐condensing) | |
| Altitude | < 2000m | |
| Structure | Dimensions | 206*110*62mm |
| Weight | 2.0kg | |
| Cooling Mode | force-‐air cooling | |
| Noise | 43DB |
